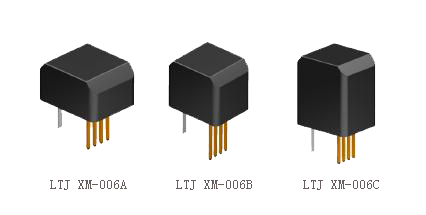

LTJ-XM-006 Series

Features

1. High sensitivity and excellent gap characteristics.

2. Output voltage is independent of scanning speed.

3. Excellent CMRR performance due to differential design.

4. Sensor has detection width of 6 mm.

Applications

1. Bank note validator.

2. Magnetic ink document reader.

Absolute parameters

Item   Value Unit
Max. Supply Voltage Va max 6 V
Isolation Voltage VI 200 V
Working Temperature Topg -10 ~ +65
Storage Temperature Tstg -30 ~ +85
Working Humanity HRh 10 ~ 90 %
ESD Level (HBM) ESD 2 kV

Electrical specifications(Ta = 25℃)

Item   Value Unit
Max. Supply Voltage Va max 6 V
Isolation Voltage VI 200 V
Working Temperature Topg -10 ~ +65
Storage Temperature) Tstg -30 ~ +85
Working Humanity HRh 10% ~ 90%
ESD Level (HBM)   2 kV

Physical parameters

Item   Part Number MinTyp Max Unit
Detection Width Wd LTJ-XM-006 6 mm
Surface Field1 H LTJ-XM-006 500 Gs
Channel width Wc LTJ-XM-006 6 mm

1 The magnetic field on the surface of the sensor along the width direction.

Dimensions

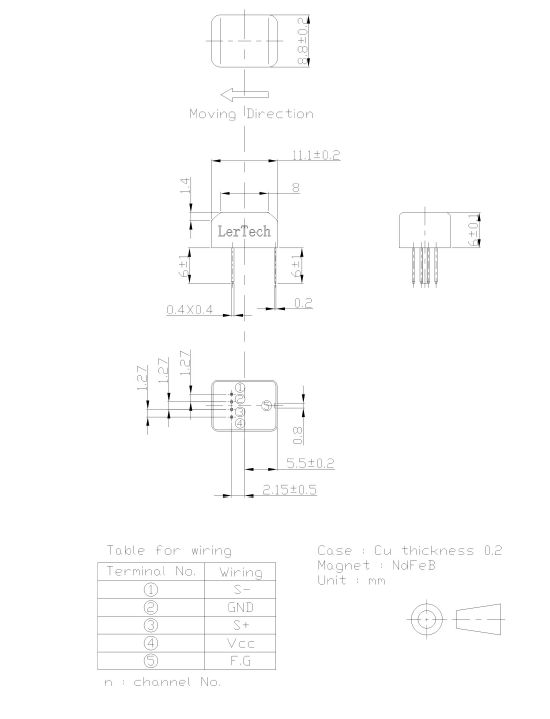

LTJ-XM-006A

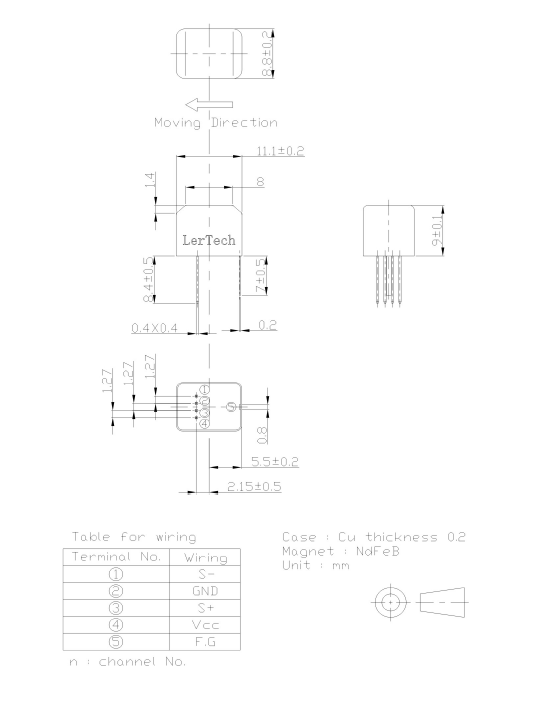

LTJ-XM-006B

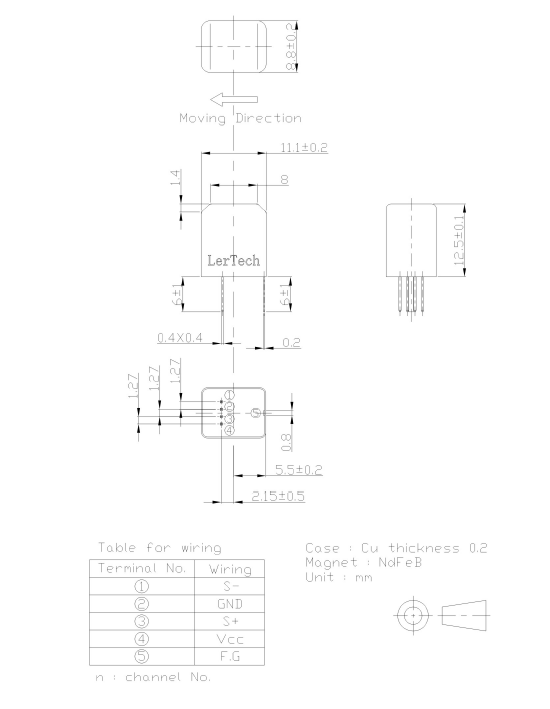

LTJ-XM-006C
